Using Analog Gems in the Digital Age
The Freqport FreqInOut allows the integration of analog outboard gear into a DAW, enabling it to be used like a plugin.
This article summarises the full in-depth German review originally published on Amazona.de — read the full German version here.
In Short:
- Integration: External analog equipment can easily be integrated into the DAW like a plugin.
- Compact: Small device, mobile solution for laptop musicians.
- Sound quality: Great sound, but precise gain staging is necessary.
- Ease of use: Intuitive installation and comfortable software control.
- Price: At €589, it’s quite expensive, but matches the device’s value.
Sometimes, as a tester, you’re asked to review equipment that doesn’t initially spark your personal interest. That was the case here. But I must admit: the more time I spent with it, the more fascinated I became.
What Is the Freqport FreqInOut FO1?
In short, the Freqport FreqInOut allows you to integrate analog hardware into your DAW workflow in such a way that the inputs and outputs of the external gear (thus, its full sound-shaping capabilities) can be loaded and controlled as a plugin. Cool, right?
Studio purists might say: “But I’ve been doing this for ages with inserts or FX sends on my console!” And they’d be right. Technically, the Freqport FreqInOut offers similar routing options. However, as more and more productions happen entirely in-the-box on laptops without large, dusty consoles, this device addresses a growing need.
If you’d like to read the original full-length German review with audio examples, head over to Amazona.de.

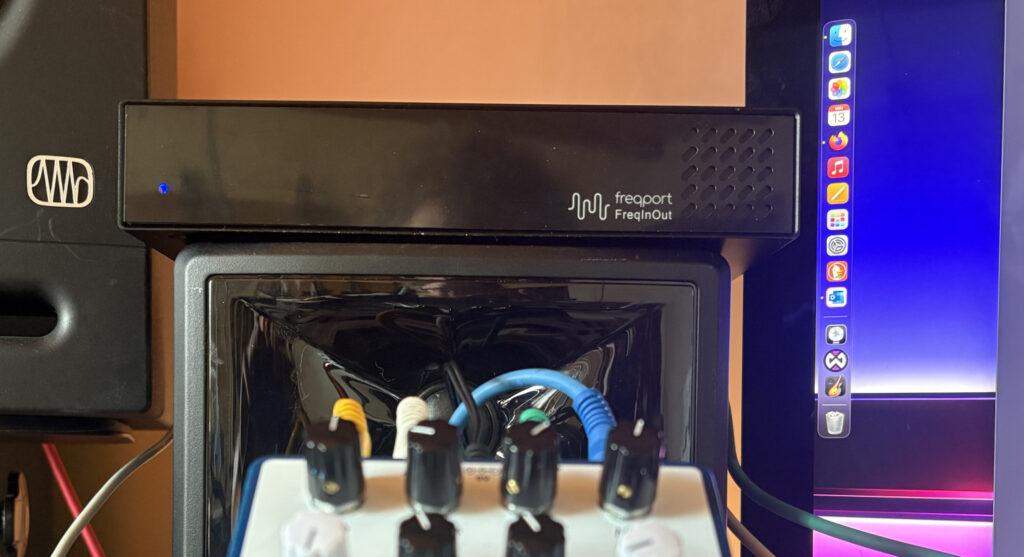

The FreqInOut is ideal for users who want to stay mobile and compact, yet still own treasured analog pieces—like a vintage tape echo or beloved tube compressor. I, for example, wanted to integrate my EQD Avalanche Run pedal (a combined delay/reverb) with my Scuffham Amps S-Gear plugin. So let’s dive in.
Concept and Build

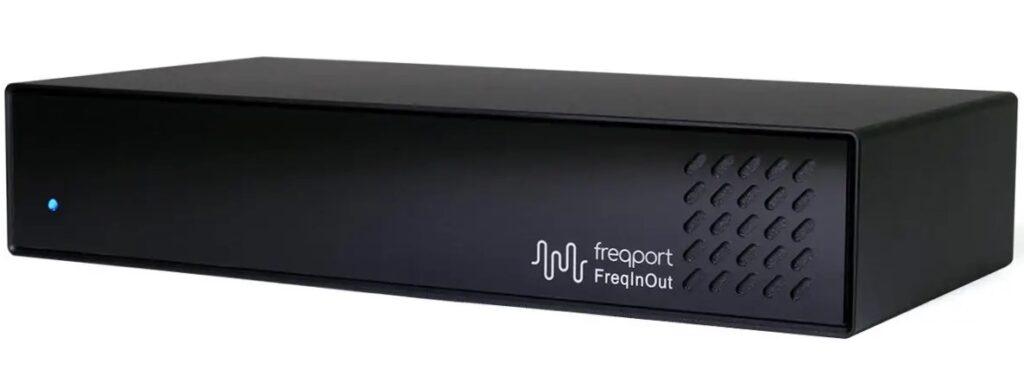

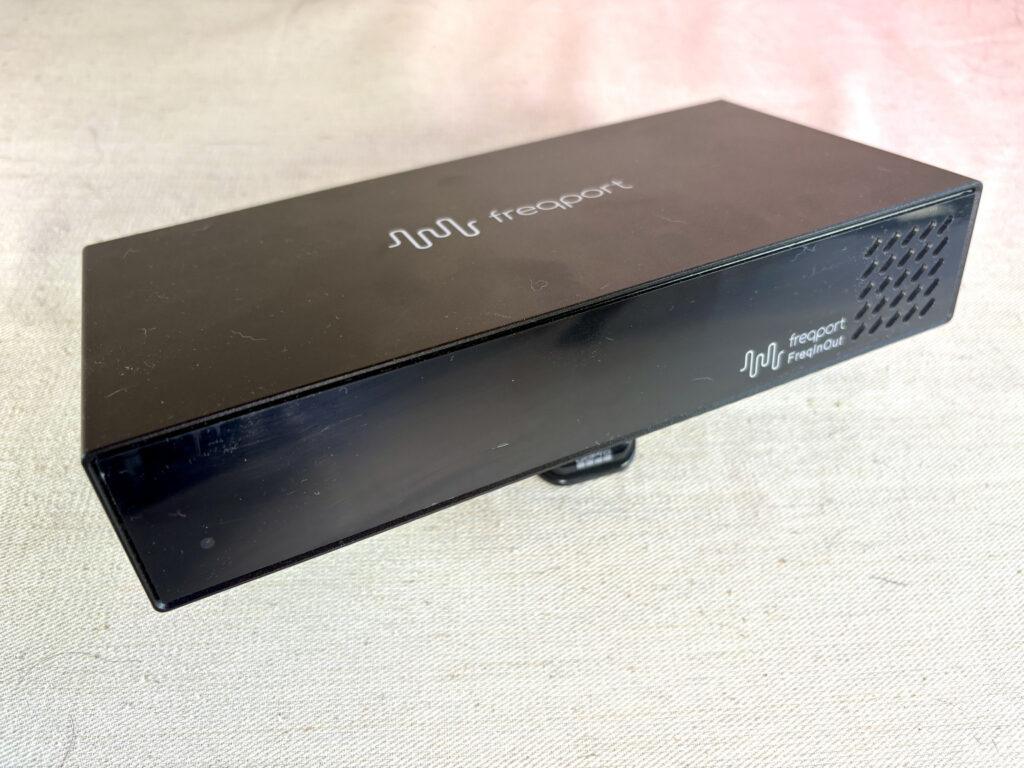

After unboxing, I was greeted by a high-quality, minimalist device weighing around 800g, measuring 220 × 105 × 43 mm. The solid housing features just a blue LED and the company logo on the front.

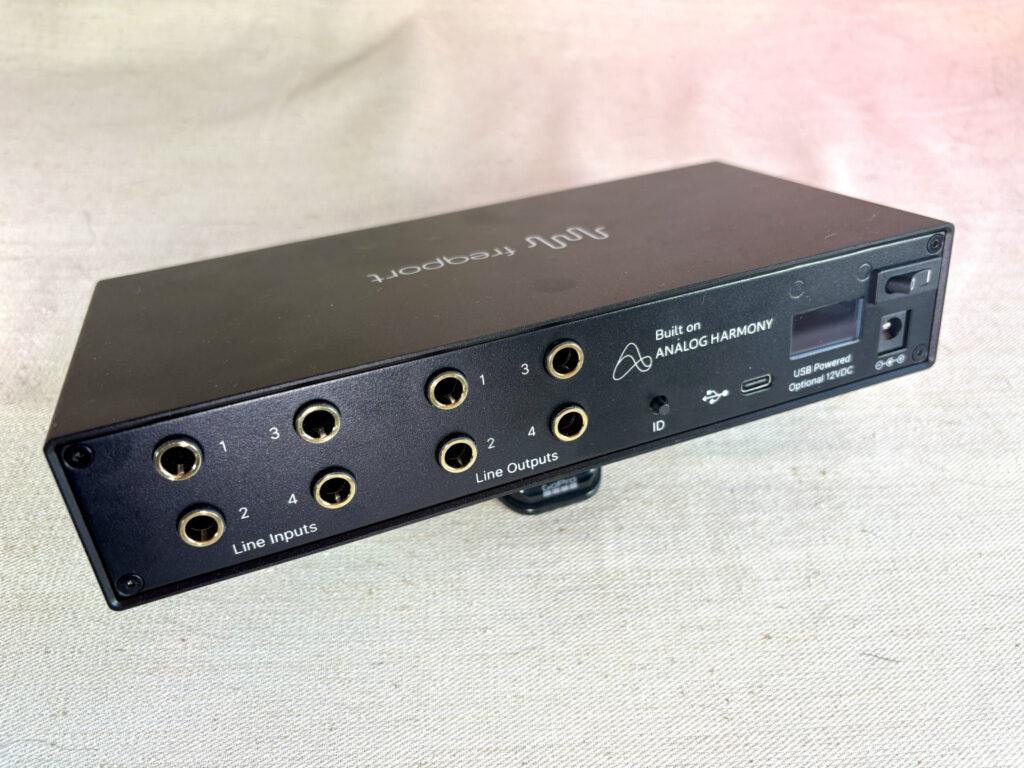

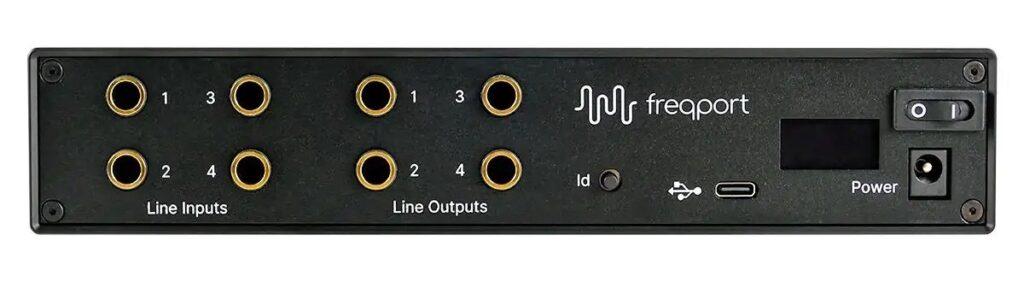

The rear is more interesting: eight 1/4” jacks allow multiple connection configurations — 4 inputs and 4 outputs.
A USB-C port handles both data and power (as long as your computer’s USB can deliver 5W), otherwise you can use an optional 12V DC power supply (not included).
There’s also a power switch and a tiny display showing serial number, firmware version, and a unit ID, which is important if using multiple FreqInOuts.
Software Installation
To download the software, you create an account on the manufacturer’s website, register your unit, and select Mac or Windows versions. Installers are provided as AU, AAX, and VST3—covering all major DAWs.
After installation and restarting your DAW, the FreqInOut plugin appears and is ready for use.
For real-time rendering (mixdowns, mastering), your DAW must be set to realtime bounce because the Freqport operates independently from your DAW’s primary audio interface.
Hardware Configuration
You can configure up to 4 mono devices, 2 stereo devices, or mixed combinations. Inputs 1 & 2 or 3 & 4 can be linked for stereo. Each device can be named for easy identification.
When using multiple FreqInOut units, they appear as Unit A or B. Each input/output pair has trim pots for fine-tuning levels. A global mix knob controls dry/wet balance. A mid/side mode is also available, increasing routing flexibility.
In Practice
Once installed, the creative fun begins. While software plugins store settings with your project, hardware doesn’t. But Freqport offers an elegant solution:

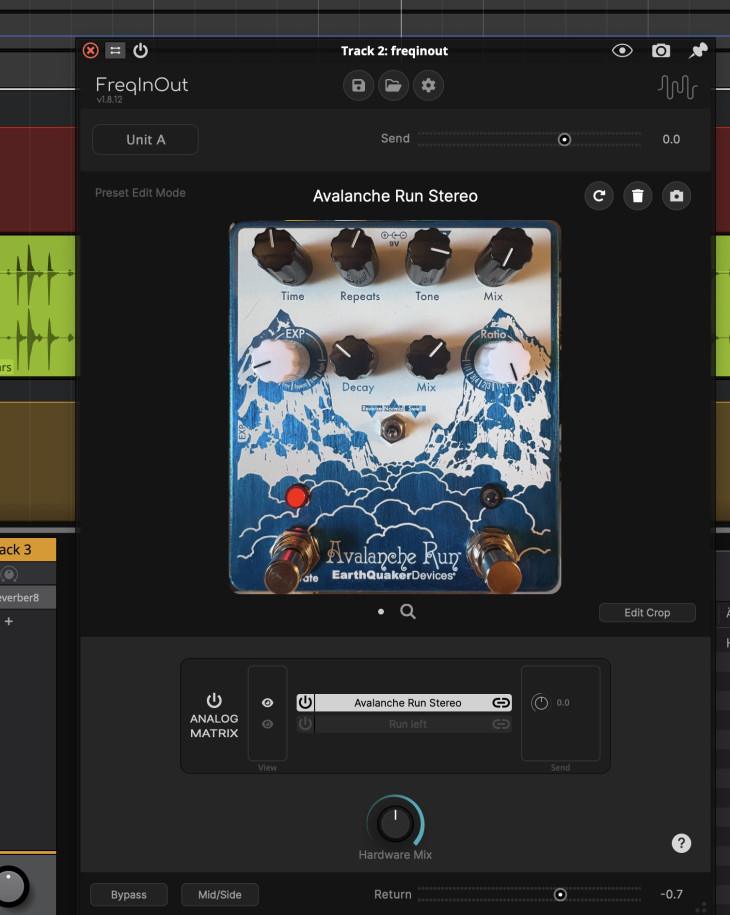

Inside the plugin’s editor, you can upload a photo of your hardware’s settings—either from your computer or by scanning a QR code with your phone. The photo appears in your DAW, visually documenting your gear’s settings for perfect recall. Brilliantly practical.
Conclusion
The Freqport FreqInOut is excellent for anyone wanting to integrate their analog gear into modern DAW setups, especially for laptop musicians or those lacking complex routing interfaces. The seamless DAW integration even makes it appealing for live performance setups in Mainstage, Ableton Live, etc. I’m very impressed, despite the €589 price tag.
Pros:
- Superb sound quality
- Smooth integration
- Excellent for hybrid studio setups
- USB-powered mobility
- Innovative preset recall via photo capture
